Trenchless Technology Construction Methods and Improvements

Trenchless Technology Magazine recently recognized RK&K in its 2019 listing of the “Top 50 Trenchless Engineering Firms.” In fact, RK&K was cited as making the “biggest jump on the Top 50 ranking, nearly doubling its trenchless revenue from a year ago and moving up from No. 20 to No. 13 this year.” RK&K has consistently been ranked in the Top 20 since 2015, with previous rankings of No. 16 in 2015 and 2017. RK&K revenues that included trenchless work has also consistently increased and approached approximately $30 million in 2018.

So, what exactly is trenchless technology?

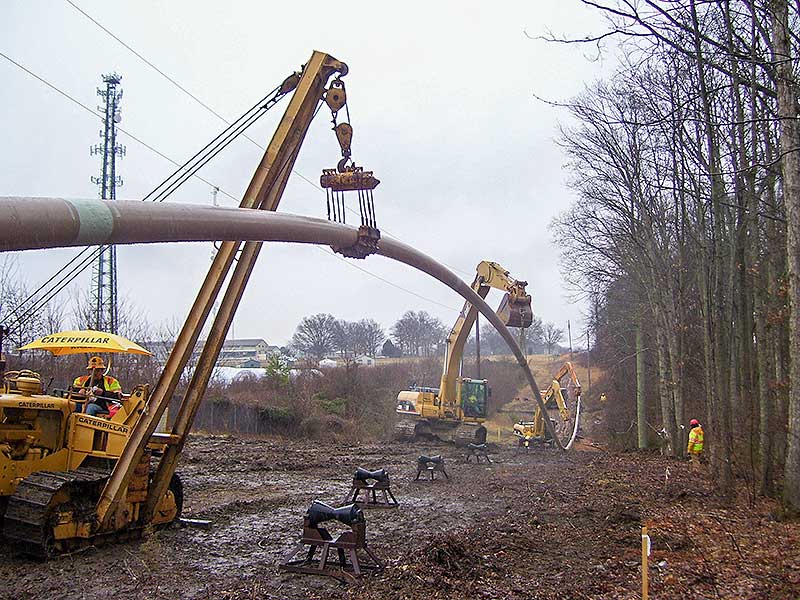

A crane hoists a pipe used in trenchless technology applications.

Trenchless technology includes several forms of work. It can include construction methods for installing new underground pipes or utilities where surface disturbance via traditional trench type installations are not feasible or prohibited, such as under roadways, in environmentally sensitive areas or under water bodies. It can be used anywhere open-cut type installations would be too costly, impede surface activities or cause excessive environmental impacts.

Trenchless work also includes rehabilitation of existing underground pipelines, utilities and structures such as water mains, sanitary sewers, force mains and pressure sewers, and storm drains, as well as manholes, vaults and other utility structures without excavation.

Examples of trenchless or semi-trenchless technologies for installing new pipelines and utilities include: tunneling, micro-tunneling, horizontal directional drilling (HDD), pipe ramming, horizontal auger boring (jack and bore), and pipe bursting.

Construction workers on a sidewalk.

Several other forms of trenchless technologies can be used to repair and rehabilitate existing pipelines, utilities or structures. These include methods such as: slipliners, continuous or segmental panel or spirally-wound liners systems, spray-on cementitious, epoxy or geopolymer coatings, carbon-fiber reinforced polymer (CFRP) liners, and cured-in-place pipe (CIPP) liner systems.

The importance and prevalence of trenchless technology has grown over the years as project locations have become more congested and owners and the public more sensitive to disturbance and/or environmental impacts.

While more traditional methods such as pipe ramming and jack and bore have been in use for most of the 20th century, they were limited in the length. Microtunneling and HDD, which were developed in the 1970s, have significantly addressed these shortcomings. Newer technologies offer greater control and the ability to install longer lengths of pipe and make this installation method a practical option for crossing large highways, waterbodies or other environmentally sensitive areas.

Carbon Fiber Reinforced Polymer (CFRP) Liners – Pressure Segmental

In situ (or in-place) rehabilitation methods for repair of existing pipelines and utilities has also grown over the last 20 years. Rehabilitation technologies such as CIPP and CFRP lining systems, centrifugally-applied geopolymer mortars, epoxy coatings and pipe bursting have allowed existing deteriorated pipelines to be structurally repaired or replaced in-place without the need for excessive excavation.

These technologies allow thin-walled structural liner materials to be installed/applied to the interior of existing pipelines and formed to the shape of the existing pipe to form a new “pipe within a pipe”, thereby increasing the service life of the utility in excess of 50 years in most cases without the need for excavation.

In some cases, capacities of the existing pipelines can be increased either through upsizing, via pipe bursting, or by creating a reduced friction coefficient through the use of smooth thin-walled liner systems.

A closer look at drilling tools.

Trenchless technology is an important tool in RK&K’s design capabilities and we strive to provide the best possible solutions to our clients. We do this by looking at all aspects of a given project to ensure the highest likelihood of success.

As trenchless construction and rehabilitation continue to evolve, RK&K will remain in the forefront of utilizing these techniques and technologies to best meet project and clients’ needs and requirements for expanding and/or maintaining their utility infrastructures.
